Rule-A-Matic Plus Float Switch

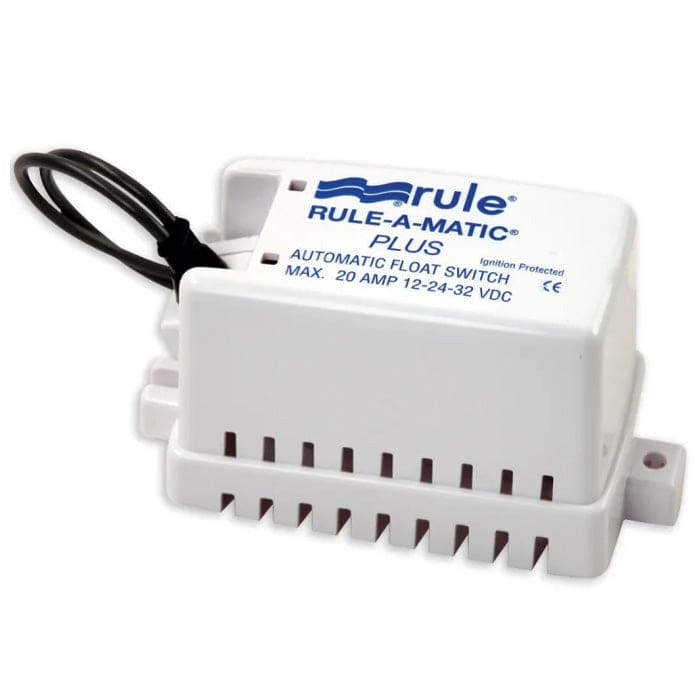

Rule-A-Matic® Plus™ Float Switch

Features:

• Strong, fully integrated impact-resistant cover protects against debris and jamming
• Switch turns bilge pump on when water level reaches 2" – turns pump off when water level reaches 3/4"
• Detachable mounting base makes switch easier to install and remove for cleaning
• Environmentally friendly mercury-free design
• Patent-pending snap switch tested to over 1,000,000 cycles @ 12 Volt DC
• Highly abrasion-resistant marine-grade blocked wire
• Exclusive moisture-tight seals
• Can also be used to operate high water alarm systems
• Simple manual test feature to check for obstructions
• Ignition protected
• 2-year warranty

Specifications:

• Rule Model No. 40A
• Nominal Voltage: 12 / 24 / 32 Volt DC
• Max. Current Draw: 20 Amps
• Wire Size: 14 AWG
• Wire Length: 28"
• Dimensions: 2-7/8" H x 2-1/2" W x 5-1/4" L
